Quick Overview

HIGH DEFINITION High Power Detachable Soundbar with Powerful Subwoofer

Experience unparalleled audio performance with the HD-320, the ultimate upgrade from the best-selling CASB 240. This enhanced model offers superior sound quality, advanced features, and low distortion even at high power levels, elevating your TV audio experience to new heights.
  • ClearBASS Room Acoustics & Dynamic Equalization
  • 320W with Dynamic Sound Tuning, Without Distortion
  • HDMI ARC for seamless connectivity
  • 4 x 2.25” drivers for maximum clarity and definition
  • Low distortion 6.5" Subwoofer
  • Incredible Bass down to 30Hz
  • Slim and elegant design
  • WiSOUND DSP for optimized performance from 2.1 Soundbars
  • Detachable soundbar for extreme placement flexibility
€169
  • High Power Bass Reflex

    Enjoy deep and powerful bass without distortion

    The special shape of the bass reflex increases smooth airflow and ensures great sound quality.

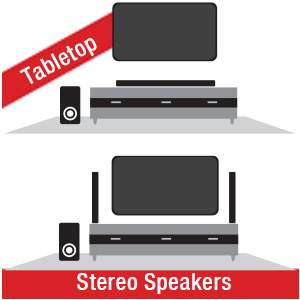

  • Detachable Soundbar

    Adjust your sound system according to your needs and the available space

    The option to detach the soundbar into two satellite speakers offers great flexibility in terms of aesthetics and set up convenience.

  • Deep & Powerful Bass

    Enjoy impressively deep Bass that brings out all low-end frequencies from movie sound effects to lively music tracks

    Bass: The four low octaves, with their centre frequencies below 250 Hz.

    A. SUB-BASS: Center Frequency:31Hz, Frequency Range: 20-40Hz
       Sound Characteristics: Weighty Sound felt more than heard.
       The sound is free from these Colorations: Rumble
    Examples of instruments sound: Kick Drum, Bass, Organ

    B. LOW BASS: Center Frequency:63Hz, Frequency Range: 40-80Hz
       Sound Characteristics: Depth, Thud, Bass Fullness
       The sound is free from these Colorations: Boomy, lose definition
    Examples of instruments sound: Kick Drum, Bass, Piano

    C. MID-BASS: Center Frequency:125Hz, Frequency Range: 80-160Hz
       Sound Characteristics: Fat, Body, Weight
       The sound is free from these Colorations: Chesty, plummy, boomy, unclear
    Examples of instruments sound: Punchy Bass, Vocals’ fullness, Toms Attack, Guitar & Snare Fullness, Warm Piano & Horns

    D. UPPER BASS: Center Frequency:250Hz, Frequency Range: 160-320Hz
       Sound Characteristics: Warmth,
       The sound is free from these Colorations: Boxy, hollow, muddy
    Examples of instruments sound: Vocals, Electric Guitar, and Snare Fullness & Liveliness. Many acoustic instruments, Brass (e.g., alto saxophone), Woodwinds (e.g., clarinet), Violins, etc.

    Enjoy and share our BASS PLAYLIST*
    with the Best Tracks to Test your Speakers and Headphones on TIDAL and SPOTIFY:

    *Test your Headphones and Speakers with the Best Tracks, selected by Crystal Audio engineers, and based on ITU-R BS.1284-2 (01/2019) International Standard.

  • Natural & Pleasant Vocals

    Listen to information-rich midrange frequencies that deliver even the tiniest sound details leading to a fine-tuned audio experience.

    Midrange / Vocals: The three midrange octaves, with their centre frequencies between 250Hz-4kHz

    A. Low-Mid: Center Frequency 500Hz Frequency Range: 320-640Hz
    Sound Characteristics: Projection, Presence
    The sound is free from these Colorations: Tubelike, Tunelly, Honky
    Examples of instruments sound: Texture balance, Horn effect on Vocals, Bassline Attack & Clarity

    B. Mid-Midrange: Center Frequency 1kHz Frequency Range: 640Hz-1.25kHz
    Sound Characteristics: Focused & Loud Projection, Whack, Attack
    The sound is free from these Colorations: Cuplike, Honky, Nasal
    Examples of instruments sound: Attack on snare drum, guitar and percussion, ""phone effect"" on vocals

    C. Upper-Mid: Center Frequency 2kHz Frequency Range: 1.25-2.5kHz
    Sound Characteristics: Crunch, Crispy, Musical, Natural, Intense of Sound
    The sound is free from these Colorations: Nasal, Hard, Gritty
    Examples of instruments sound: Vocals Articulation, Guitars liveliness

    Enjoy and share our MIDRANGE PLAYLIST*
    with the Best Tracks to Test your Speakers and Headphones on TIDAL and SPOTIFY:

    *Test your Headphones and Speakers with the Best Tracks, selected by Crystal Audio engineers, and based on ITU-R BS.1284-2 (01/2019) International Standard.

  • Crystal Clear Treble

    Experience pure, crisp high frequencies without distortions

    Treble: The three high octaves, with their centre frequencies above 4kHz.

    A. Low-Treble: Center Frequency 4kHz Frequency Range: 2.5-5kHz
    Sound Characteristics: Clarity, Presence, Edge, Detail
    The sound is free from these Colorations: Upper hardness, Wiry, Harshness
    Examples of instruments sound: Vocals Clarity, and Detail, Toms Attack, Snare Crispness, Violin & Piccolo Harmonics, Clarity of any instrument taking a solo

    B. Mid-Treble: Center Frequency 8kHz Frequency Range: 5kHz-10kHz
    Sound Characteristics: Crystal, Metallic, Sizzle, Brightness, Brilliance, Detail, Air
    The sound is free from these Colorations: Sharp, Metallic, Sibilant
    Examples of instruments sound: Attack on snare drum, guitar and percussion, ""phone effect"" on vocals Cymbals, Synths, Metallic Percussion, Steel string instruments, Snare crispness, Electric guitar air/sizzle

    C. Upper-Treble: Center Frequency 16kHz Frequency Range: 10-20kHz
    Sound Characteristics: Air, Openness, Light, Crispy, Delicate
    The sound is free from these Colorations: Fizzy, Gritty, Hiss
    Examples of instruments sound: Hi-hat & Cymbals, Adds ambience to all sounds

    Enjoy and share our TREBLE PLAYLIST*
    with the Best Tracks to Test your Speakers and Headphones on TIDAL and SPOTIFY:

    *Test your Headphones and Speakers with the Best Tracks, selected by Crystal Audio engineers, and based on ITU-R BS.1284-2 (01/2019) International Standard.

  • Stereo Impression - Imaging

    The Sound Image appears to have the correct and appropriate ​Direction Distribution of the Sound Source.

    Experience Directional balance​, Stability, Sound Image width, Location accuracy. Examples of common ​descriptive terms: Wide / Narrow , Precise / Imprecise

    Enjoy and share our STEREO IMPRESSION PLAYLIST*
    with the Best Tracks to Test your Speakers and Headphones on TIDAL and SPOTIFY:

    *Test your Headphones and Speakers with the Best Tracks, selected by Crystal Audio engineers, and based on ITU-R BS.1284-2 (01/2019) International Standard.

    Sound

    • Channels
      2.1
    • Frequency Range
      30Hz-20kHz
    • Subwoofer
      1 x 16.5cm (6.5in)
    • Mid/Tweeter
      4 x 5cm (2in)

    Power

    • Maximum total speaker power output
      320
    • Total speaker power output (WRMS)
      160
    • Subwoofer (WRMS)
      120
    • Mid/Tweeter (WRMS)
      4x10
    • Subwoofer Amplifier Power (WRMS)
      60

    Inputs

    • Bluetooth Version
      5.0
    • HDMI (ARC)
    • Optical Input
    • USB Port
    • AUX input

    General Features

    • LED Display
    • Dimensions WxHxD (mm)
      800x65x60 (SB) / 400x65x60 (SPK) / 300x180x360 (SW)
    • What's in the box
      (1) Product (2) Power DC Adaptor (3) User Manual (4) Remote Control (5) RCA Cable (6) Minijack 3.5mm Cable
     Enjoy your music as the artists intended
